OpenStudio’s p5.js allows you to provide a dynamic input as a source image for img2img work.

Getting Started

After checking the img2img option you have the option to choose P5.js.

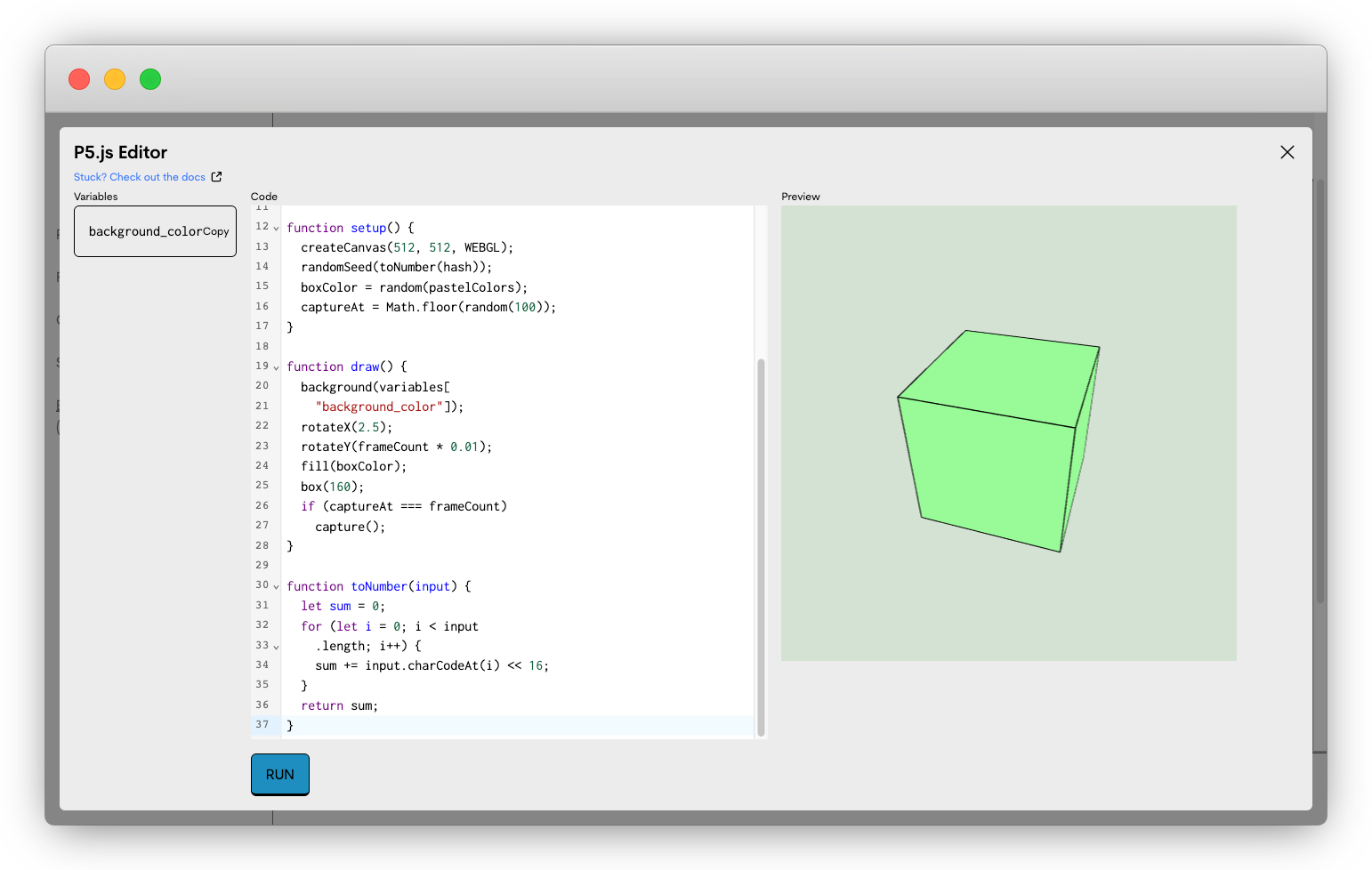

Once selected you can open the editor and write P5.js. The output will act as the image for img2img generation.

How it works

Behind the scenes, our generators run the p5 code in a virtual browser. The browser captures the output in its window and passes it to Stable Diffusion.

Features

Variables Support

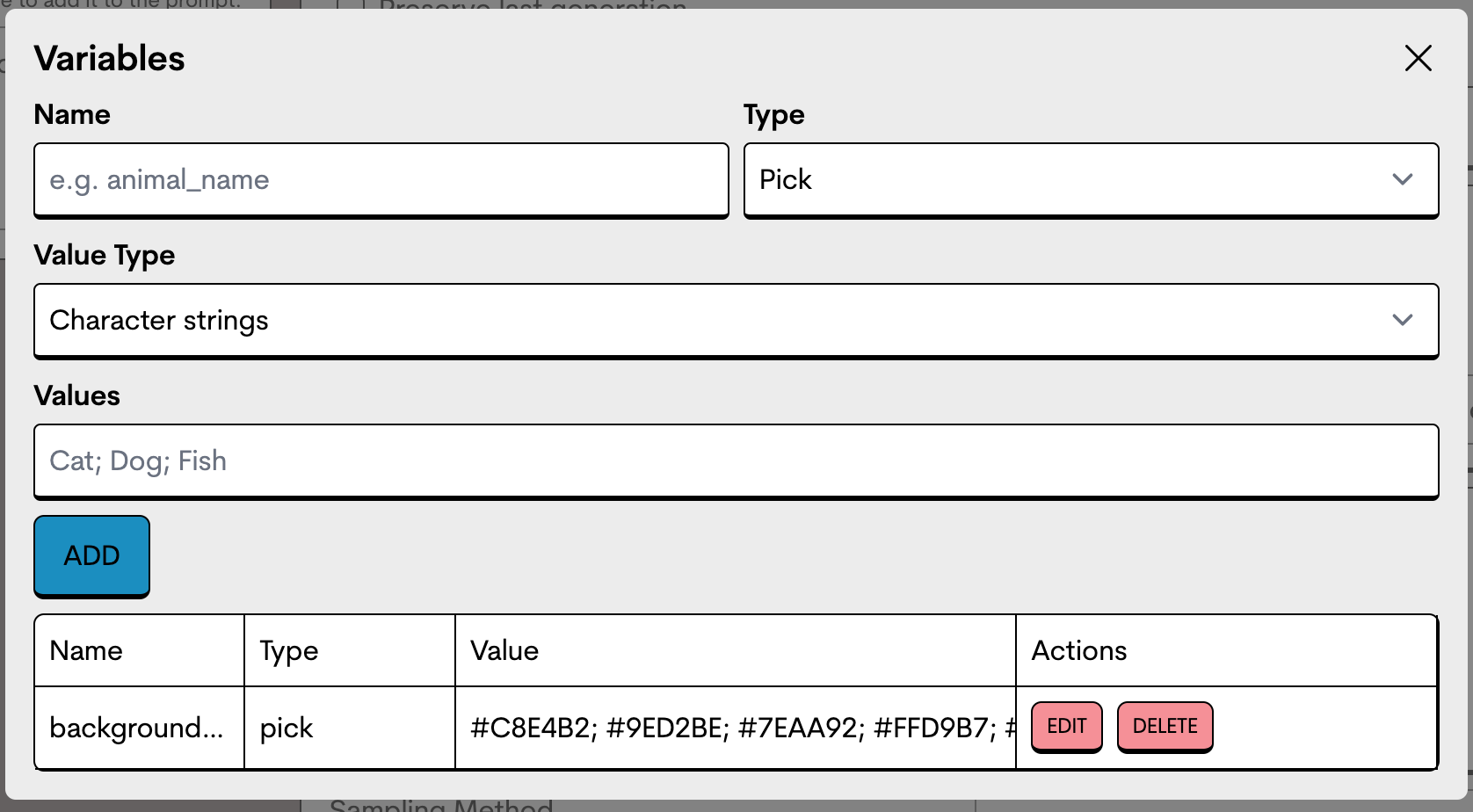

You can use variables defined in the Variables section of your project. Only Character string value types are supported. In order to use them, a global variables object is exposed to your P5.js script:

javascript
function draw() {
  background(variables["background_color"]);
  // or use dot notation
  background(variables.background_color);
}

The preferred syntax for using variables is variables["myVariable"]

Pseudorandom number generator

EmRandom is a set of utility functions that helps artists to generate pseudorandom numbers.

the “hash” variable

plain text
pseudorandomSeed(hash)
const randomFloat = pseudorandom(1,100)
console.log(randomFloat)

EmRandom Methods

pseudorandomSeed(seed) ⇒ void

This function initializes the pseudo-random number generator with the provided string seed.

pseudorandom(min = 0, max = 1) ⇒ number

Generates a pseudo-random decimal number between the specified minimum (inclusive) and maximum (exclusive) values.

pseudorandoms(n, min, max) ⇒ number

Generates an array of pseudo-random integers within the specified range.

pseudorandomInteger(min, max) ⇒ number

Generates a pseudo-random integer within the specified range.

pseudorandomIntegers(n, min, max) ⇒ number

Generates an array of pseudo-random integers within the specified range.

pseudorandomBoolean() ⇒ boolean

Generates a pseudo-random boolean value (true or false).

pseudorandomPick(array) ⇒ any

Picks a random element from the given array.

pseudorandomWeightedPick(array, weights) ⇒ any

Picks a random element from the given array based on the provided weights.

pseudorandomPickButNot(array, exclude) ⇒ any

Picks a random element from the given array, excluding a specified element.

Frame Capturing

Frame capturing enables artists to capture a particular frame of an animated script written in P5.js.

capture() ⇒ void

Captures the current frame, e.g.

javascript
let captureAt = 100;

function draw() {
	...
	if (frameCount === captureAt) capture();
}
